TECHNICAL DATA

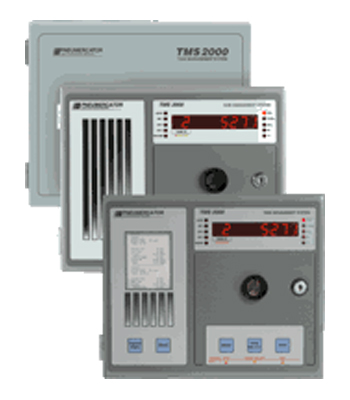

• Extremely flexible, modular system architecture. Completely field configurable and upgradeable.

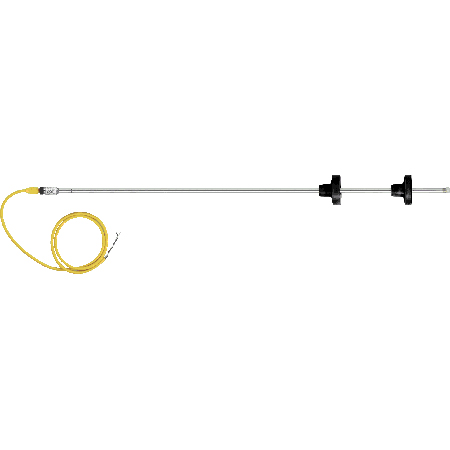

• Support for up to 2 precision, dual float magnetostrictive level probes.
• Provisions for monitoring up to 8 intrinsically safe discrete sensor inputs, including discriminating and non-discriminating interstitial, overfill, and secondary leak containment sensors. Sensor wiring fault detection feature ensures correct installation when used with Pneumercator “F” series fault output discrete sensors.
• Basic configuration includes 2 relays and 2 contact closure inputs. Optionally expandable to a total of 10 relays and 10 contact closure inputs OR 18 relays.
• Optionally expandable to 6 or 12 channel analog outputs
• Third party certified for 0.1 and 0.2 gph in-tank leak detection in tanks up to 75,000 gallons.
• Optional internal impact printer for automatic or on-demand reports. Outdoor printer option available.
• Remotely monitor and program via an included RS-232 serial port, from a central location via optional, secured, internal modem, or from a LAN/WAN via optional, secured, internal network interface card. RS-485 port included for connection to Pneumercator “smart” peripherals, such as remote display and annunciator panels.
• Log reports include: Automatic shift inventory, unsupervised deliveries, bulk sales, alarms, leak test, water removal, product ordering, and theft logging.
• NEMA 4/4X enclosure options available for harsh or outdoor environments.
